Whiffletree in Excel
 Click here to see more examples. |
 |

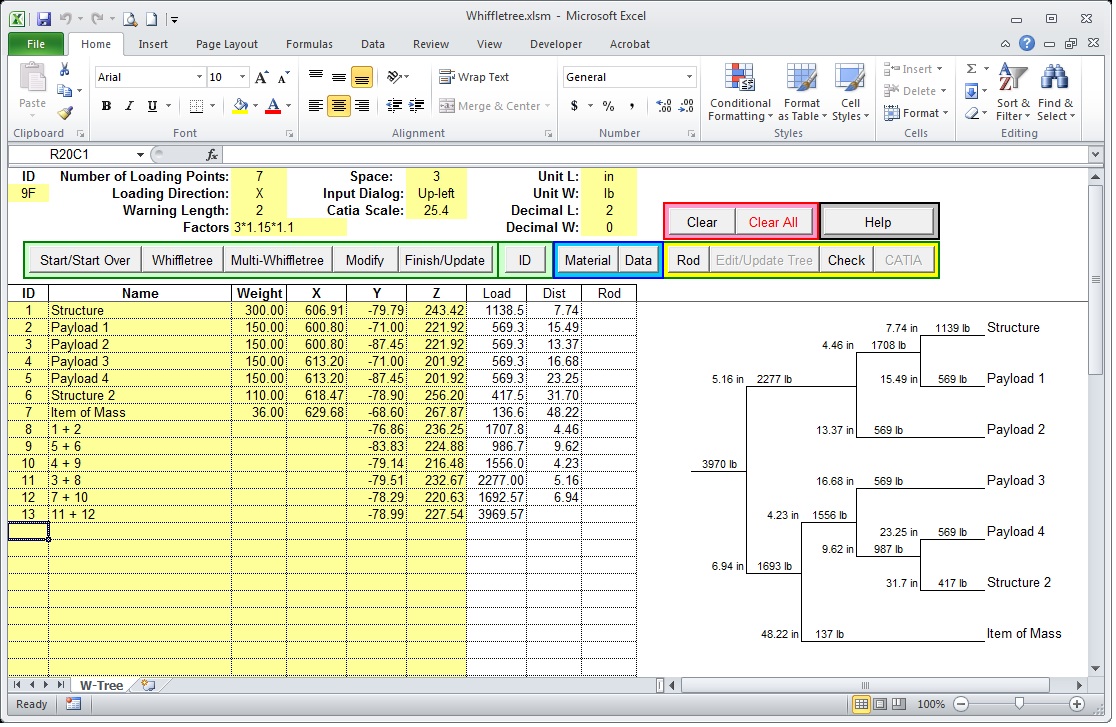

Here is an Excel version of whiffletree. This is not as powerful as 3DWhiffletree, but it still does a good job for you!
- 2-dimensional basis (best works for simple whiffletree structures)
- Full automated whiffletree diagram creation
- Flexible display for units and decimal places
- Auto material selection for whiffletree beam and rods
- Easy update and modify
- Support export to Catia
Download Excel-Whiffletree (Free and no ristrictions!)
- Macro-enabled Excel (Require Office 2010 or later version)
- No additional file, license, registration, or installation required.

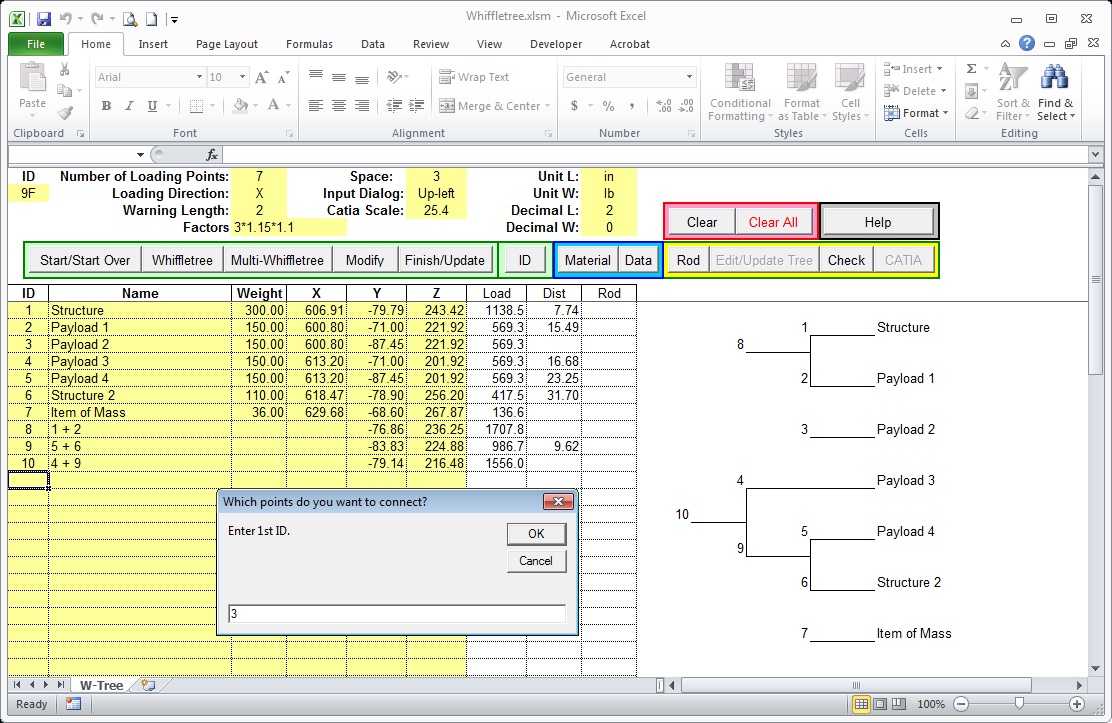

You can see help pages including example screenshots here. (This help is included in the Excel file.)
